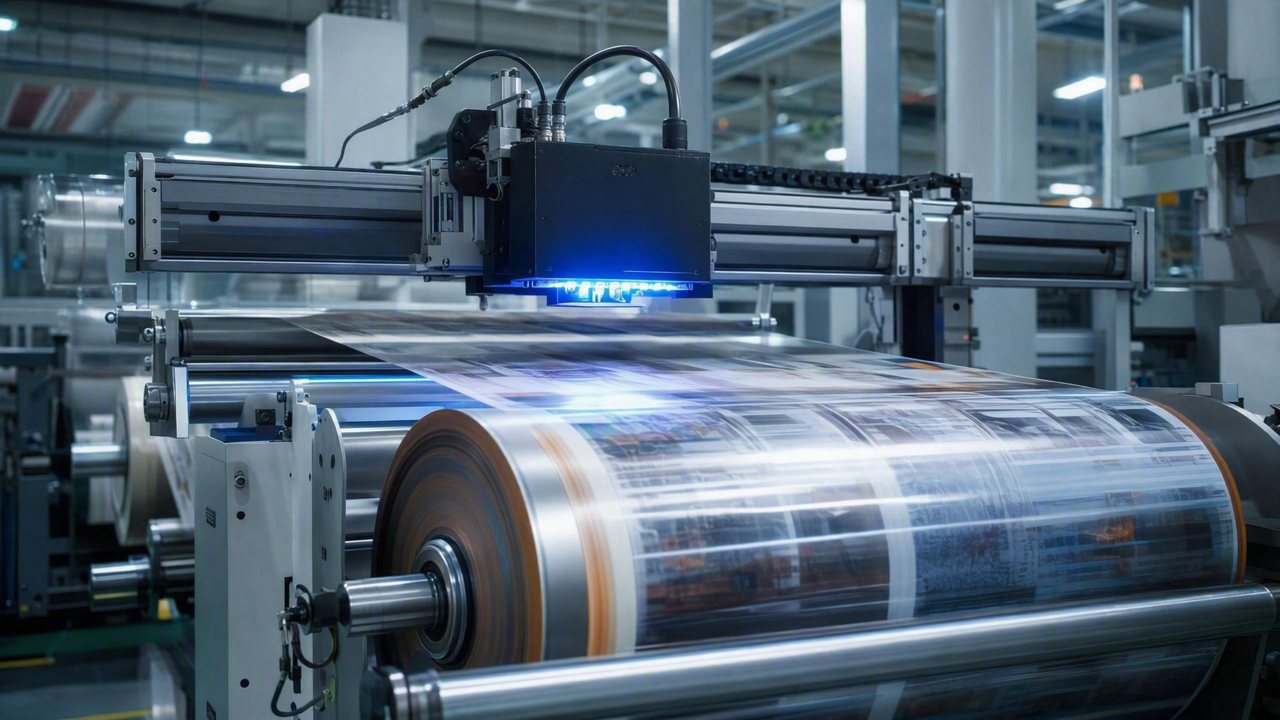

Printed Film Roll Defects: 2D AI AOI for Zero-Code Rapid Changeover & Multi-Variety Batch Inspection

WeLinkirt's 2D AI AOI equipment (high-resolution 2D imaging + deep learning secondary judgment, targeting surface/print/OCR/assembly defects, high-speed inline full inspection, micron-level, semantic false positive filtering) leverages its innovative zero-code rapid changeover and multi-variety small-batch inspection capabilities to reduce significant downtime caused by frequent changeovers in printed film roll production within the chemical/materials industry, from an average of 4 hours to under 5 minutes. Concurrently, it reduces the false positive rate by −90%, significantly enhancing production rhythm and inspection accuracy.

WeLinkirt's 2D AI AOI equipment (high-resolution 2D imaging + deep learning secondary judgment, targeting surface/print/OCR/assembly defects, high-speed inline full inspection, micron-level, semantic false positive filtering) leverages its innovative zero-code rapid changeover and multi-variety small-batch inspection capabilities to reduce significant downtime caused by frequent changeovers in printed film roll production within the chemical/materials industry, from an average of 4 hours to under 5 minutes. Concurrently, it reduces the false positive rate by −90%, significantly enhancing production rhythm and inspection accuracy. In the chemical/materials sector, particularly in functional films, flexible packaging materials, and label printing, product variety is extensive, and customized customer demands are growing. This necessitates frequent switching of different specifications, patterns, and material roll products on production lines. Traditional inspection solutions often require complex parameter adjustments and model training for each new product, which is time-consuming and labor-intensive, severely impacting efficiency and cost control in small-batch, multi-variety production models. For instance, a leading materials manufacturer producing high-end optical films might need to switch product models 5-8 times a day, with each changeover entailing prolonged downtime and manual debugging. This is precisely the core problem that WeLinkirt's 2D AI AOI equipment aims to solve.

Pain Points: Why This Hurdle Is So Difficult to Overcome

The core pain points faced by this leading materials manufacturer include: Firstly, **long changeover downtime**. Due to high product customization, different batches of printed film rolls vary in patterns, colors, substrates, and defect types. Traditional rule-based AOI systems or manual visual inspection require at least 2-4 hours for parameter resetting, template matching, or staff training during each changeover, leading to a −20% reduction in overall production line efficiency. Secondly, **persistently high false positive rates**. For micron-level subtle scratches, foreign particles, ink splashes, and other defects, traditional vision algorithms struggle to distinguish between true defects and normal variations like background textures or printing color differences. This results in false positive rates as high as 8-15%, necessitating extensive manual re-inspection and increasing labor costs by 30%. Thirdly, **the risk of missed detections remains**. Especially for low-contrast, irregularly shaped defects on high-speed production lines, manual inspection is prone to fatigue, and traditional AOI recognition rates are often below 95%, leading to a missed detection rate of around 0.5%. This directly impacts product quality and customer satisfaction, potentially even leading to recall risks. Finally, **high model training barriers**. Existing AI vision solutions often require a large number of defect samples for training, and their generalization capabilities are poor, making it difficult to adapt to the rapid launch of new products in small-batch, multi-variety production. Each new product typically requires weeks of sample collection and model iteration.

The root cause of these challenges lies in the complex surface characteristics of printed film rolls, such as reflection, light transmission, surface texture, and multi-layer structures, which demand extremely high image quality and defect feature extraction. Concurrently, the fast production tempo, typically reaching 100-300 meters/minute, leaves very little time for the inspection system to process images. Traditional rule-based vision algorithms cannot flexibly adapt to these variations, and the stability and accuracy of manual visual inspection are difficult to guarantee under high-speed and prolonged work. Drawing inspiration from current industry trends, where CV quality inspection large models in automotive manufacturing are achieving intelligent and high-precision defect detection through powerful generalization and self-learning mechanisms, WeLinkirt's 2D AI AOI equipment adopts a similar approach, enabling intelligent identification and rapid adaptation to complex and varied defects through deep learning and few-shot learning.

Technical Principles

The core technology of WeLinkirt's 2D AI AOI equipment lies in its “high-resolution 2D imaging + deep learning secondary judgment” architecture, coupled with the unique DaoAI AI AOI software system. Firstly, the high-resolution 2D imaging system employs industrial-grade high-frame-rate cameras and customized lighting to capture micron-level (e.g., 50 microns) subtle defects, ensuring clear and stable images without motion blur even at high roll speeds. Secondly, image data is fed into the DaoAI AI AOI software system for processing. This system incorporates feature recognition capabilities based on visual foundation models, eliminating the need for complex parameter settings typical of traditional rule-based AOI. Crucially, the WeLinkirt DaoAI AI AOI software system supports APDT (Anomaly Pattern Discovery and Tracking) positive/few-shot learning. This means that for new products, only 1-20 good product images are needed for the system to complete model training within 5 minutes, achieving zero-code automatic programming. This stands in stark contrast to traditional methods that require extensive defect samples and take days or even weeks to train. Furthermore, the deep learning model possesses powerful semantic false positive filtering capabilities, intelligently distinguishing between normal product textures, background noise, and true defects, reducing the false positive rate from 8-15% in traditional AOI to <1%. This significantly reduces the workload of manual re-inspection. WeLinkirt's 2D AI AOI equipment effectively overcomes the limitations of traditional vision solutions in complex backgrounds, diverse defects, and high-speed production lines through this mechanism.

Compared to traditional rule-based AOI, the greatest advantage of WeLinkirt's 2D AI AOI equipment is its self-learning and generalization capabilities. Traditional AOI relies on manually set thresholds and geometric rules, making it sensitive to changes in defect shape, size, and contrast. Once the product or defect type changes, rules need to be re-adjusted, which is time-consuming and prone to missing new types of defects. In contrast, the WeLinkirt DaoAI AI AOI software system learns deep features of defects through deep neural networks, enabling precise identification even for low-contrast, irregularly shaped defects. Compared to manual visual inspection, the system achieves 100% inline full inspection, avoiding missed detections due to human fatigue, and maintaining a stable detection rate above 99.5%. It also provides traceable inspection data, offering strong support for quality management.

Typical Application Scenarios

• **Printed Pattern Defect Detection:** In color printed film production, detecting uneven ink, missing print, misregistration, color difference, spots, scratches, etc. WeLinkirt's 2D AI AOI equipment captures tiny printing defects with high-resolution imaging, combined with deep learning models, to distinguish between normal print textures and actual defects, avoiding false positives.
• **Surface Foreign Objects and Scratch Detection:** For the surface of functional films (e.g., optical films, protective films), detecting dust, fibers, oil stains, bubbles, micro-scratches, creases, etc. The system utilizes multi-angle lighting and high-sensitivity cameras, combined with AI algorithms, to effectively identify low-contrast, irregularly shaped surface foreign objects.
• **Character and Barcode OCR/OCV:** For batch numbers, dates, serial numbers on label rolls (OCR) and verification (OCV), as well as barcode/QR code recognition and quality assessment. The built-in OCR module of the WeLinkirt DaoAI AI AOI software system achieves high-precision recognition even under poor print quality or complex background conditions.
• **Delamination and Wrinkle Detection:** In composite film production, detecting bubbles, delamination, and wrinkles between film layers. While primarily using 2D imaging, specific lighting and algorithms can capture subtle deformations or light/shadow changes on the surface caused by these defects.
• **Dimension and Position Deviation Detection:** Measuring dimensions and detecting position deviations for printed patterns, label cutting edges, positioning holes, etc. The system can achieve micron-level measurement accuracy, ensuring products meet design specifications.

Implementation Case Study

A leading chemical materials manufacturer in East China, primarily producing various high-end printed films and label rolls, had hundreds of product models, with small production volumes per batch. Before introducing WeLinkirt's 2D AI AOI equipment, this production line faced severe changeover efficiency issues. Whenever product models switched, the traditional rule-based AOI system required engineers to spend 3-5 hours on parameter adjustment and testing, leading to an average of 4 hours of daily production line downtime, severely impacting capacity. Concurrently, due to the high false positive rate of traditional AOI, at least 2 workers per shift were needed to manually re-inspect detection results, increasing labor costs. After learning about the advantages of zero-code rapid changeover offered by the WeLinkirt DaoAI AI AOI software system, the manufacturer decided to adopt our solution.

The WeLinkirt team first assessed the site, determining the optimal camera selection, lighting configuration, and installation location. During the implementation, leveraging the APDT positive sample learning capability of the DaoAI AI AOI software system, the system completed new product model training within 5 minutes using only 10-20 good product images. After deployment, the results were immediate: **changeover downtime plummeted from an average of 4 hours to under 5 minutes**, boosting overall production line efficiency by 25%. Simultaneously, due to the semantic false positive filtering capability of the deep learning model, **the false positive rate was reduced by −90%**, cutting manual re-inspection workload by 80% and freeing up significant labor. More importantly, WeLinkirt's 2D AI AOI equipment consistently controlled the missed detection rate to <0.4%, significantly improving outbound product quality and reducing customer complaints and return risks. The manufacturer highly recognized the performance of WeLinkirt's 2D AI AOI equipment and plans to extend its application to more production lines.

WeLinkirt's 2D AI AOI equipment truly enabled 'plug-and-play' rapid changeover for our production line, greatly enhancing the flexibility and efficiency of small-batch, multi-variety production—something traditional solutions simply cannot match.

WeLinkirt Solutions and Products

WeLinkirt provides a core solution based on its 2D AI AOI equipment, powered by the DaoAI AI AOI software system. This system, through its core visual foundation models and APDT positive/few-shot learning technology, achieves “zero-code rapid changeover and multi-variety small-batch” inspection. For customers, this means that even without specialized AI engineers, on-site operators can create and deploy new product models within 5 minutes. Deployment is flexible, supporting SDK/API/Docker and other forms, and can be 100% locally privatized, ensuring customer data remains on-site, meeting strict data security and compliance requirements. Furthermore, the WeLinkirt DaoAI World Model, as a unified foundation, endows the system with stronger semantic understanding and cross-scenario generalization capabilities, allowing it to continuously learn from production line feedback and optimize inspection performance. In terms of integration, WeLinkirt's 2D AI AOI equipment can seamlessly integrate into existing production lines, providing standard interfaces for connection with customer MES/SCADA systems, enabling closed-loop data management and providing a solid foundation for smart manufacturing.

Through the application of WeLinkirt's 2D AI AOI equipment, customers have not only achieved significant improvements in product quality but also gained tangible business value. **Changeover downtime was reduced by −98%**, directly translating to increased production line uptime and capacity. **The false positive rate was reduced by −90%**, substantially cutting manual re-inspection costs and resource waste. **The missed detection rate was controlled to <0.4%**, effectively reducing quality risks and customer complaints. These quantified results collectively demonstrate the exceptional return on investment and core competitiveness of WeLinkirt's 2D AI AOI equipment in printed film roll inspection within the chemical/materials industry.
