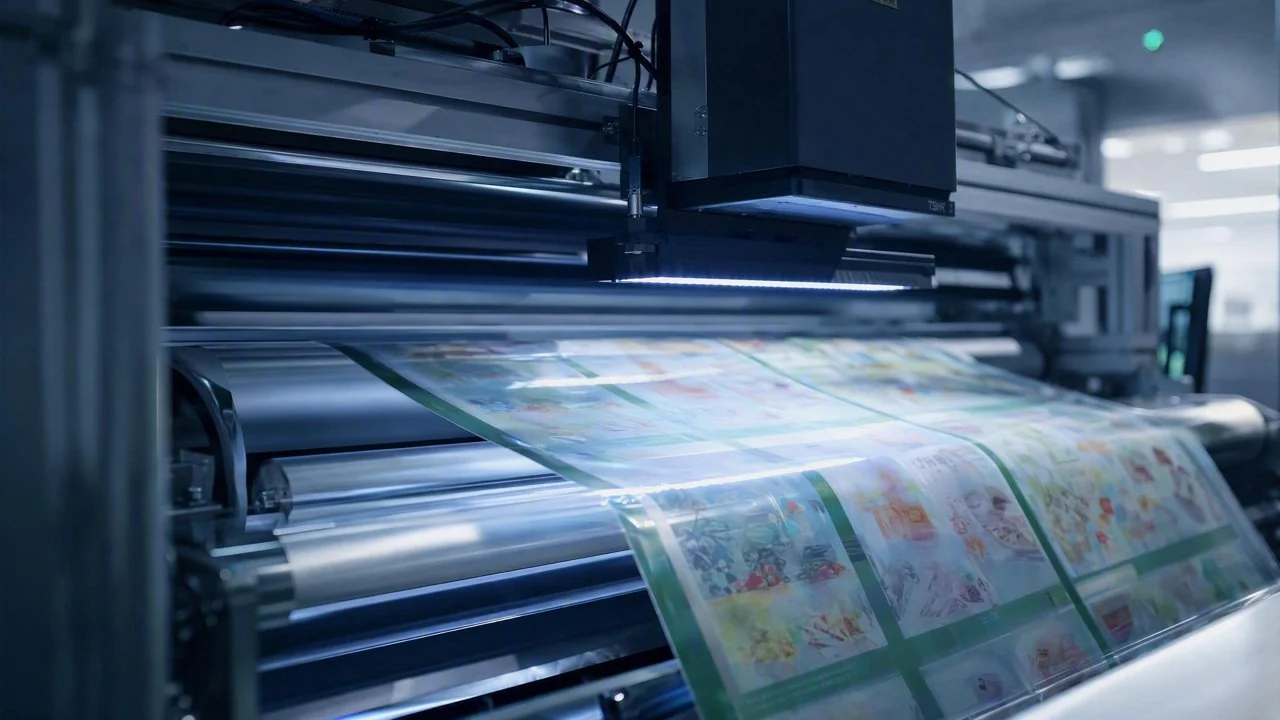

Chemical Film Printing Defects: DaoAI 2D AI AOI Boosts Throughput for 100% Online Inspection

DaoAI 2D AI AOI equipment (high-resolution 2D imaging + deep learning secondary judgment, targeting surface/printing/OCR/assembly defects, high-speed online full inspection, micron-level, semantic false positive filtering) optimizes image processing and AI judgment efficiency, reducing the false positive rate on chemical material printing film lines by -85% and boosting the inspection speed to 300 meters/minute. This achieves 100% online full inspection capacity, a feat difficult for traditional solutions, and significantly enhances overall production line efficiency and product quality.

In the chemical materials industry, particularly in the production of printed films and label rolls, inspecting surface defects and print quality is a critical step to ensure product performance and brand image. These materials are widely used in packaging, electronics, medical, and other fields, where their surface quality directly impacts subsequent processing and the end-user experience. Traditional inspection methods often rely on manual visual inspection or rule-based vision systems. However, facing high-speed production cycles and micron-level defects, these methods struggle to meet modern industrial demands for both efficiency and precision. Especially on printed film production lines, any minute ink dots, scratches, bubbles, color variations, or blurred characters can lead to the rejection of entire batches, causing significant economic losses. DaoAI 2D AI AOI equipment addresses these challenges by integrating high-resolution 2D imaging with deep learning secondary judgment, providing chemical material manufacturers with an efficient and precise online full inspection solution.

Pain Points: Why This Hurdle Is Difficult to Overcome

Quality inspection of chemical material printed films faces multiple challenges that severely impact production cycle times and full inspection capacity. Firstly, traditional manual visual inspection is almost impossible to achieve 100% full inspection on high-speed roll-to-roll production lines. Its inefficiency and susceptibility to human fatigue lead to an average missed detection rate of 3-5%, while a persistently high false positive rate results in extensive unnecessary re-inspection hours. Secondly, traditional rule-based vision systems exhibit poor generalization capabilities when dealing with complex, varied surface textures, tiny, or irregular defects. They require frequent parameter adjustments, leading to prolonged changeover downtime, averaging 30-60 minutes per changeover. For continuous production in the chemical industry, this means valuable production time is wasted. Moreover, due to the inherent characteristics of the materials themselves (e.g., reflective, transparent, translucent), imaging is challenging, and micron-level defects are difficult to capture at high speeds, further complicating inspection. These factors collectively contribute to significant product quality fluctuations, increased production costs, and elevated compliance risks.

A deeper reason is that traditional image processing technologies, whether manual inspection or rule-based vision, struggle to effectively distinguish between 'true defects' and 'background noise.' For instance, inherent microscopic textures of film materials, slight dust, or minor ink dot jitters during the printing process are easily misidentified as defects by traditional methods. This high false positive rate not only increases the burden of manual re-inspection but also leads to frequent production line interruptions, severely slowing down the production cycle and making 100% full inspection economically and technically unfeasible. In the context of the rise of industrial quality inspection large models, the disadvantages of traditional solutions in complex defect recognition and generalization capabilities are becoming increasingly apparent, making it difficult to cope with constantly changing product designs and defect types.

Technical Principles

DaoAI 2D AI AOI equipment fundamentally solves the challenges of chemical material printing defect detection by combining high-resolution 2D imaging with deep learning secondary judgment. Its core technology involves using industrial-grade high-frame-rate line scan cameras and customized lighting systems to achieve micron-level resolution image acquisition on high-speed moving roll materials, ensuring image clarity and detail capture. The acquired images then enter a deep learning model, powered by the DaoAI Wemio engine, for initial judgment. This model, based on advanced visual foundation model architecture, possesses powerful feature recognition capabilities, enabling it to learn from vast amounts of data and identify various complex surface defects, printing errors, and character anomalies. Unlike traditional rule-based vision, the Wemio engine eliminates the need for manual setup of complex thresholds and feature extraction rules; instead, it automatically builds highly robust defect recognition models by learning from good samples and a few defect samples.

Crucially, DaoAI incorporates deep learning secondary judgment and semantic false positive filtering mechanisms. Potential false positives from the initial judgment are further screened by a deeper semantic analysis model. This model understands the contextual information of defects, allowing it to distinguish between the material's normal texture and genuine defects, significantly reducing the false positive rate. For example, for common microscopic bubbles or ink dots on printed films, traditional methods might reject them all. In contrast, DaoAI 2D AI AOI can precisely determine if they are true defects affecting product performance by analyzing their morphology, size, edge characteristics, and relationship with the surrounding background. This technical depth allows DaoAI 2D AI AOI to far exceed manual inspection in detection efficiency and significantly outperform traditional rule-based vision in false positive control, making 100% full inspection possible at high production line speeds, with false positive rates typically controlled below 0.5%, much lower than the 5-10% of traditional solutions.

Typical Application Scenarios

• **Surface Defect Detection for Printed Films:** On high-speed chemical printed film production lines, DaoAI 2D AI AOI can real-time detect various surface defects such as scratches, indentations, bubbles, impurities, pinholes, etc. The challenge lies in these defects often being very small, and the film material itself may have reflective or transparent properties, demanding high imaging and recognition capabilities. DaoAI equipment, through customized lighting and high-resolution imaging combined with deep learning models, accurately captures and classifies these micron-level defects.
• **Print Quality Inspection for Label Rolls:** Inspecting printing issues in labels such as misregistration, ink spots, missing print, ink bleed, color differences, and smudges. Due to complex label designs and diverse patterns, traditional methods struggle with generalization. The DaoAI Wemio engine, by learning from a large number of samples, effectively identifies various print quality issues and supports rapid changeover for multiple SKUs.
• **Character (OCR/OCV) Recognition and Verification:** Recognizing, comparing, and inspecting the quality of characters printed on films or labels, such as batch numbers, production dates, expiry dates, and serial numbers. The difficulty arises when characters are blurred or deformed due to print quality or complex backgrounds. DaoAI 2D AI AOI, combined with powerful OCR/OCV algorithms, ensures the accuracy and integrity of character recognition, preventing compliance risks caused by character issues.
• **Coating Layer Uniformity and Defect Detection:** In the coating process of chemical materials, detecting defects in the coating layer such as sagging, orange peel, particles, and uneven thickness. These defects are often subtle texture variations that are difficult for traditional vision to quantify. DaoAI 2D AI AOI, through deep analysis of image textures, effectively evaluates the uniformity of the coating layer and identifies abnormal areas.
• **Inter-layer Defect Detection in Composite Materials:** For multi-layer composite film materials, detecting defects such as bubbles, delamination, and foreign objects between layers. These defects are typically internal to the material, requiring extremely high light transmittance and imaging technology. DaoAI equipment, by optimizing imaging angles and lighting configurations, combined with AI algorithms, effectively discovers these internal defects, ensuring the structural integrity of composite materials.

Case Study

A leading chemical materials manufacturer in East China, specializing in high-end printed films, faced immense pressure from production line cycle times and increasingly stringent quality standards. Its multiple high-speed roll-to-roll production lines suffered from low efficiency due to manual visual inspection, leading to high missed detection rates and frequent false positives, severely impacting overall capacity and customer satisfaction. While traditional rule-based vision solutions had been attempted, they failed to effectively solve the problem due to insufficient generalization capabilities in complex defect recognition and frequent production stoppages for re-inspection caused by high false positive rates. The manufacturer's production lines operated at speeds up to 200 meters/minute, requiring 100% online full inspection, with a false positive rate for micron-level defects needing to be controlled below 1%. Before implementing DaoAI 2D AI AOI equipment, their manual sampling method yielded a false positive rate of 8-10%, and each changeover required 45 minutes, severely limiting production efficiency.

The DaoAI team deployed multiple 2D AI AOI devices for this manufacturer and trained models for their various printed film products. Utilizing the APDT few-shot self-training feature, models were rapidly established with just 15 good samples and a small number of defect samples. After deployment, the DaoAI 2D AI AOI system achieved 100% online full inspection of printed films, with inspection speeds increasing to 280 meters/minute, exceeding client expectations. More importantly, through deep learning secondary judgment and semantic false positive filtering, the system's false positive rate was successfully reduced by -85%, from the original 8.5% to <1.3%. This significantly reduced the workload of manual re-inspection and shortened production line downtime, greatly optimizing the overall production cycle. Furthermore, the DaoAI AI AOI software system supports product changeovers within 5 minutes, an 8-fold increase in efficiency compared to the traditional 45 minutes, significantly enhancing production line flexibility and capacity utilization.

“DaoAI 2D AI AOI not only solved our high-speed production line's full inspection challenges but also, through its precise false positive filtering capabilities, enabled us to truly achieve high-quality production under stringent cycle times, which traditional solutions simply couldn't match.” — Production Manager, a Leading Chemical Material Manufacturer

DaoAI Solutions and Products

The core solution provided by DaoAI is based on its 2D AI AOI equipment, which integrates high-resolution industrial cameras, customized lighting, high-performance image processing units, and the powerful DaoAI Wemio engine. For implementation, we first conduct an on-site survey to customize the imaging and lighting solutions based on the client's production cycle, inspection precision, and defect types. Subsequently, model training is performed using the DaoAI AI AOI software system, leveraging its APDT positive/few-shot learning capabilities to quickly build detection models with just 1-20 good images, significantly shortening the deployment cycle. For complex printing defects, the deep learning secondary judgment and semantic false positive filtering mechanism ensure an extremely low false positive rate, effectively reducing the workload of manual re-inspection. The DaoAI 2D AI AOI system supports 100% local private deployment, ensuring all data remains on-site, guaranteeing client data security and privacy. Additionally, the system features flexible interfaces for seamless integration into existing MES/SCADA systems, enabling closed-loop management and traceability of quality data.

Through the deployment of DaoAI 2D AI AOI equipment, clients achieve significant business value. Firstly, the false positive rate is reduced by -85%, substantially decreasing the burden of manual re-inspection and unnecessary downtime, directly improving production cycle times and operational efficiency. Secondly, the realization of 100% online full inspection fundamentally ensures product quality uniformity, with the missed detection rate reduced to <0.4%, significantly enhancing customer satisfaction and brand reputation. Furthermore, rapid changeover capability shortens downtime from 45 minutes to 5 minutes, greatly improving production line flexibility and capacity utilization. DaoAI also offers the DaoAI World model as a unified foundation, enabling future cross-scenario generalization and continuous learning, providing solid technical support for clients' long-term development. These quantifiable achievements collectively deliver a significant return on investment, driving the intelligent transformation of chemical material production.
